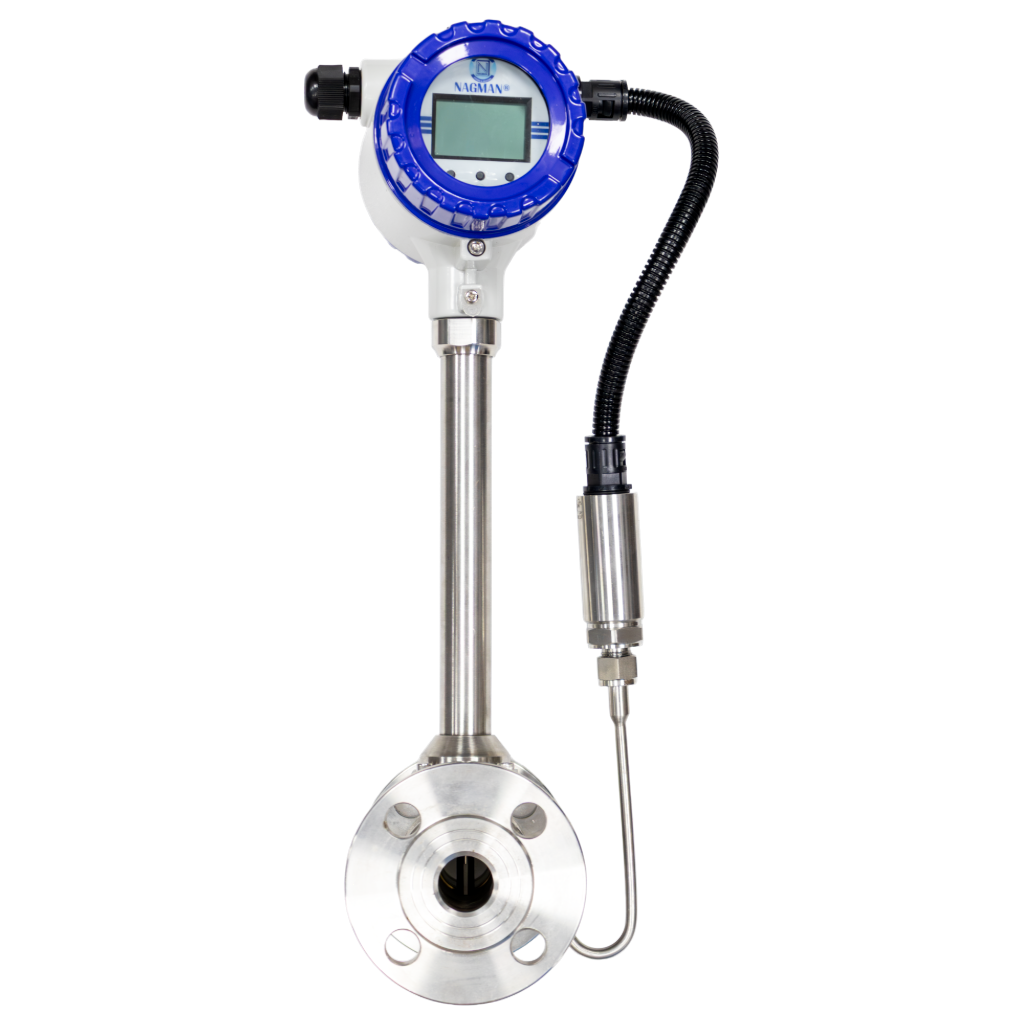

Vortex flow meters generates vortexes (Von Karman Swirls) using triangular prism and measures the frequency of vortexes which is proportional to fluid flow rate Quick look at Nagman’s Vortex Flow Meters
Custody transfer of natural gas metering
General water applications
Steam measurement
Liquid chemicals & pharmaceuticals
No moving parts, and the measuring component has a simple structure, reliable performance and long service life.
The turndown ratio can generally reach 1:10.
Wide measuring range.
Not affected by thermal parameters such as temperature, pressure, density or viscosity of the fluid being measured
Causes little pressure loss.
High accuracy, and low maintenance.
| Measured Medium | Liquid, Gas, Steam | ||||||||
| Medium Temp. | -40°C to 250°C; | ||||||||
| -40°C to 350°C (high temperature type) | |||||||||
| Pressure | Flange | DIN PN10/PN16/PN25/PN40 | |||||||
| JIS10K/20K/30K/40K | |||||||||
| ANSI 150#/300# | |||||||||
| Water | 40 Bar | ||||||||
| Thread | 16 Bar | ||||||||
| Tri-clamp | 16 Bar | ||||||||
| Insertion | 16 Bar | ||||||||
| Accuracy | ±1.0% (Flange/Wafer/Thread/Tri-clamp) | ||||||||
| ±1.5% (Insertion type) | |||||||||
| Flow Range | Liquid:0.4-7.0m/s | ||||||||
| Gas:4.0-60.0m/s | |||||||||
| Steam:5.0-70.0m/s | |||||||||
| Specifications | DN15-DN300 (flange/wafer type) | ||||||||
| DN80-DN2000 (insertion type) | |||||||||
| DN15-DN100 (thread/sanitary type) | |||||||||
| Body Material | SS304 (standard) | ||||||||
| SS316 (optional) | |||||||||
| Reynolds Number | Normal 2×104~7×106 | ||||||||
| Resistance Coefficient | Cd≦2.6 | ||||||||
| Vibration Acceleration Allowed | ≦0.2g | ||||||||
| Ambient Condition | Ambient Temp. | -40℃~65℃ | |||||||
| -20℃~55℃ | |||||||||
| Relative Humidity | ≦85% | ||||||||
| Pressure | 0.86-1.06 bar | ||||||||
| Power Supply | DC12-30V or 3.6V lithium battery powered | ||||||||
| Signal Output | 4-20mA, Pulse | ||||||||
| Communication | RS485 Modbus or HART | ||||||||
Product Details
Custody transfer of natural gas metering
General water applications
Steam measurement
Liquid chemicals & pharmaceuticals
No moving parts, and the measuring component has a simple structure, reliable performance and long service life.
The turndown ratio can generally reach 1:10.
Wide measuring range.
Not affected by thermal parameters such as temperature, pressure, density or viscosity of the fluid being measured
Causes little pressure loss.
High accuracy, and low maintenance.
| Measured Medium | Liquid, Gas, Steam | ||||||||
| Medium Temp. | -40°C to 250°C; | ||||||||
| -40°C to 350°C (high temperature type) | |||||||||
| Pressure | Flange | DIN PN10/PN16/PN25/PN40 | |||||||
| JIS10K/20K/30K/40K | |||||||||
| ANSI 150#/300# | |||||||||
| Water | 40 Bar | ||||||||
| Thread | 16 Bar | ||||||||
| Tri-clamp | 16 Bar | ||||||||
| Insertion | 16 Bar | ||||||||
| Accuracy | ±1.0% (Flange/Wafer/Thread/Tri-clamp) | ||||||||
| ±1.5% (Insertion type) | |||||||||
| Flow Range | Liquid:0.4-7.0m/s | ||||||||
| Gas:4.0-60.0m/s | |||||||||
| Steam:5.0-70.0m/s | |||||||||
| Specifications | DN15-DN300 (flange/wafer type) | ||||||||
| DN80-DN2000 (insertion type) | |||||||||
| DN15-DN100 (thread/sanitary type) | |||||||||
| Body Material | SS304 (standard) | ||||||||
| SS316 (optional) | |||||||||
| Reynolds Number | Normal 2×104~7×106 | ||||||||
| Resistance Coefficient | Cd≦2.6 | ||||||||
| Vibration Acceleration Allowed | ≦0.2g | ||||||||
| Ambient Condition | Ambient Temp. | -40℃~65℃ | |||||||
| -20℃~55℃ | |||||||||
| Relative Humidity | ≦85% | ||||||||
| Pressure | 0.86-1.06 bar | ||||||||
| Power Supply | DC12-30V or 3.6V lithium battery powered | ||||||||
| Signal Output | 4-20mA, Pulse | ||||||||
| Communication | RS485 Modbus or HART | ||||||||
