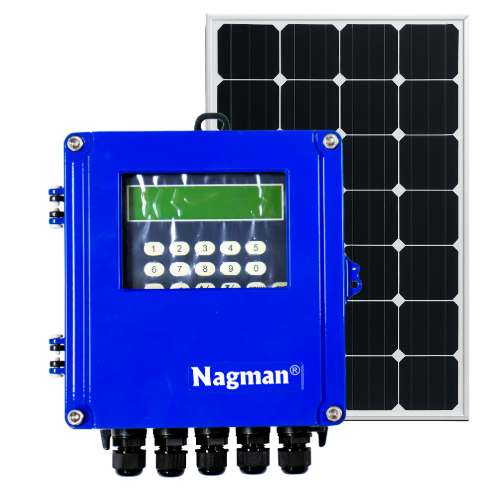

Ultrasonic Flow Meter - Solar Powered

Size	DN-15 (1/2″) to DN-6000 (200″)
Liquid type	Virtually all Liquids
Accuracy Class	±1 %
Repeatability	0.2%
Linearity	± 0.5%
Housing Material	ABS
Display	4 x 16 English letters; 16 Key with tactile action
Totalizers	7-digit totals for net, positive and negative flow respectively
Outputs	1 way 4-20rnA output, 1 way OCT pulse output, 1 way relay output
Inputs	3 way 4-20rnA input achieve to neat measurement by connecting PT100 platinum resistor
Transducers	S2H( Small Size) – DN15 to DN100, M2H ( Medium Size) – DN 50 to DN 700, L2 ( Large Size) – DN 300 to DN 6000
Power Supply	Solar Powered – 110W / 12V
Power Backup	Upto 12 Hrs
Power Consumption	Less than 1.5W
Communication	RS-485, 4-20mA, Pulse

Size	DN-15 (1/2″) to DN-6000 (200″)
Liquid type	Virtually all Liquids
Accuracy Class	±1 %
Repeatability	0.2%
Linearity	± 0.5%
Flow Velocity	Upto 12 m/s
Housing Material	ABS
Display	4 x 16 English letters; 16 Key with tactile action
Totalizers	7-digit totals for net, positive and negative flow respectively
Outputs	1 way 4-20rnA output, 1 way OCT pulse output, 1 way relay output
Inputs	3 way 4-20rnA input achieve to neat measurement by connecting PT100 platinum resistor
Transducers	S2H( Small Size) – DN15 to DN100, M2H ( Medium Size) – DN 50 to DN 700, L2 ( Large Size) – DN 300 to DN 6000
Power Supply	220VAC / 24VDC
Power Consumption	Less than 1.5W
Communication	RS-485, 4-20mA
